CARAVAN CHASSIS MOUNTED LOCKABLE BATTERY BOX / HOLDER IN BLACK POWDER COAT.

BATTERY BOX MAY BE EITHER BOLTED OR WELDED INTO PREFERRED POSITION ON CHASSIS RAIL.

VERSION 2. NEW STYLE IN CURRENT USE BY MANY VICTORIAN CARAVAN BUILDERS.

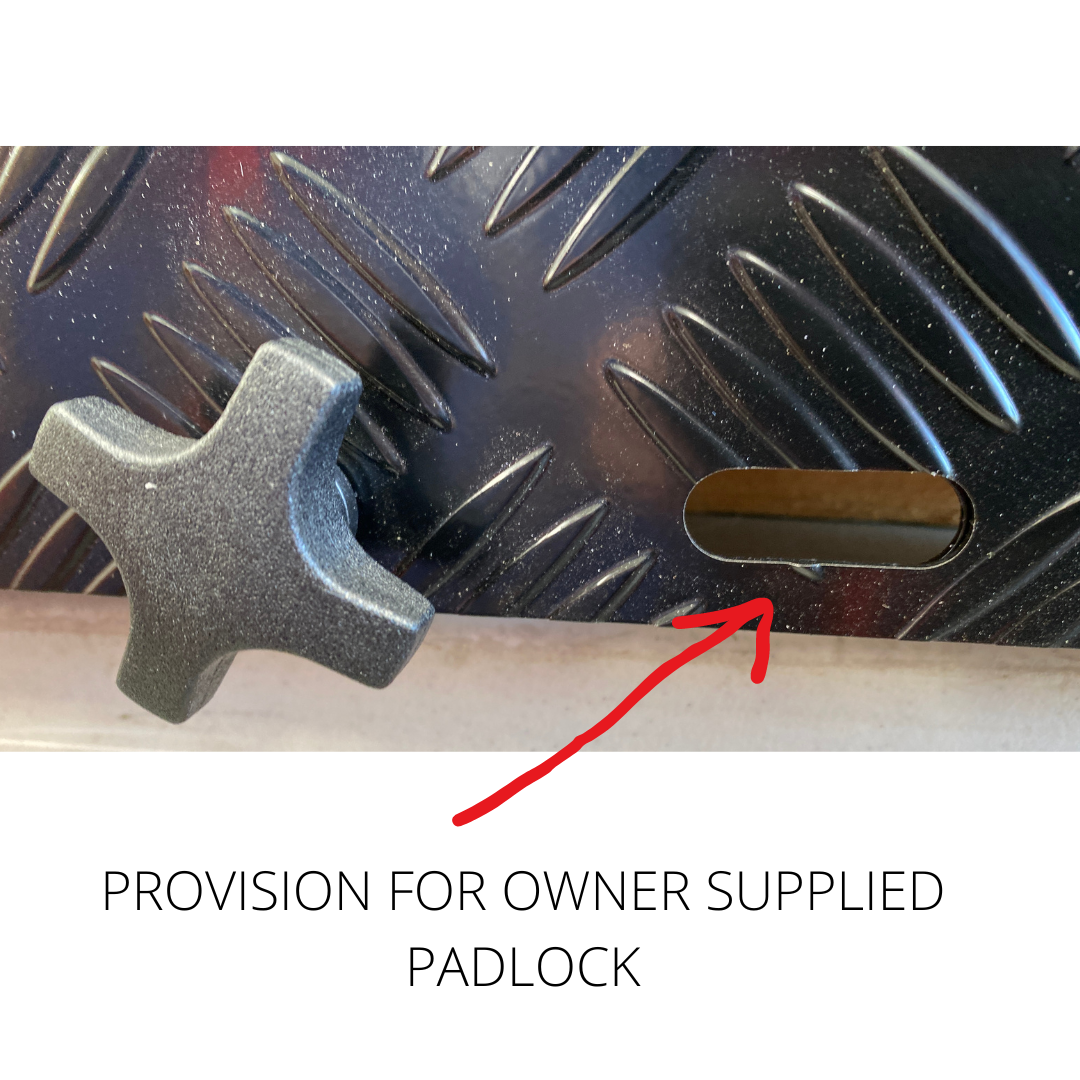

NOW LOCKABLE, PADLOCK IS NOT SUPPLIED.

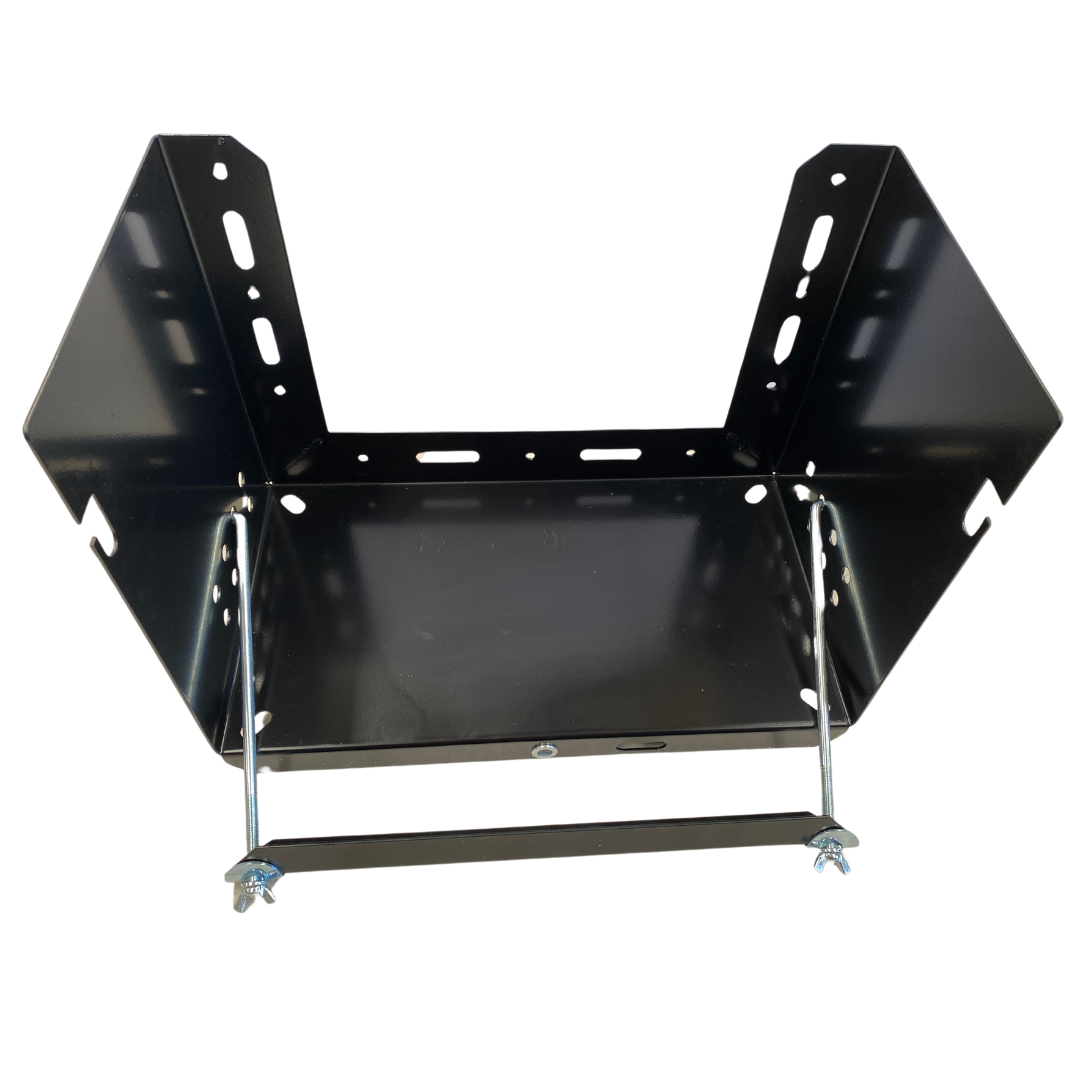

MULTI ADJUSTABLE BATTERY RETAINING BAR TO SUIT ANY SIZE BATTERY .

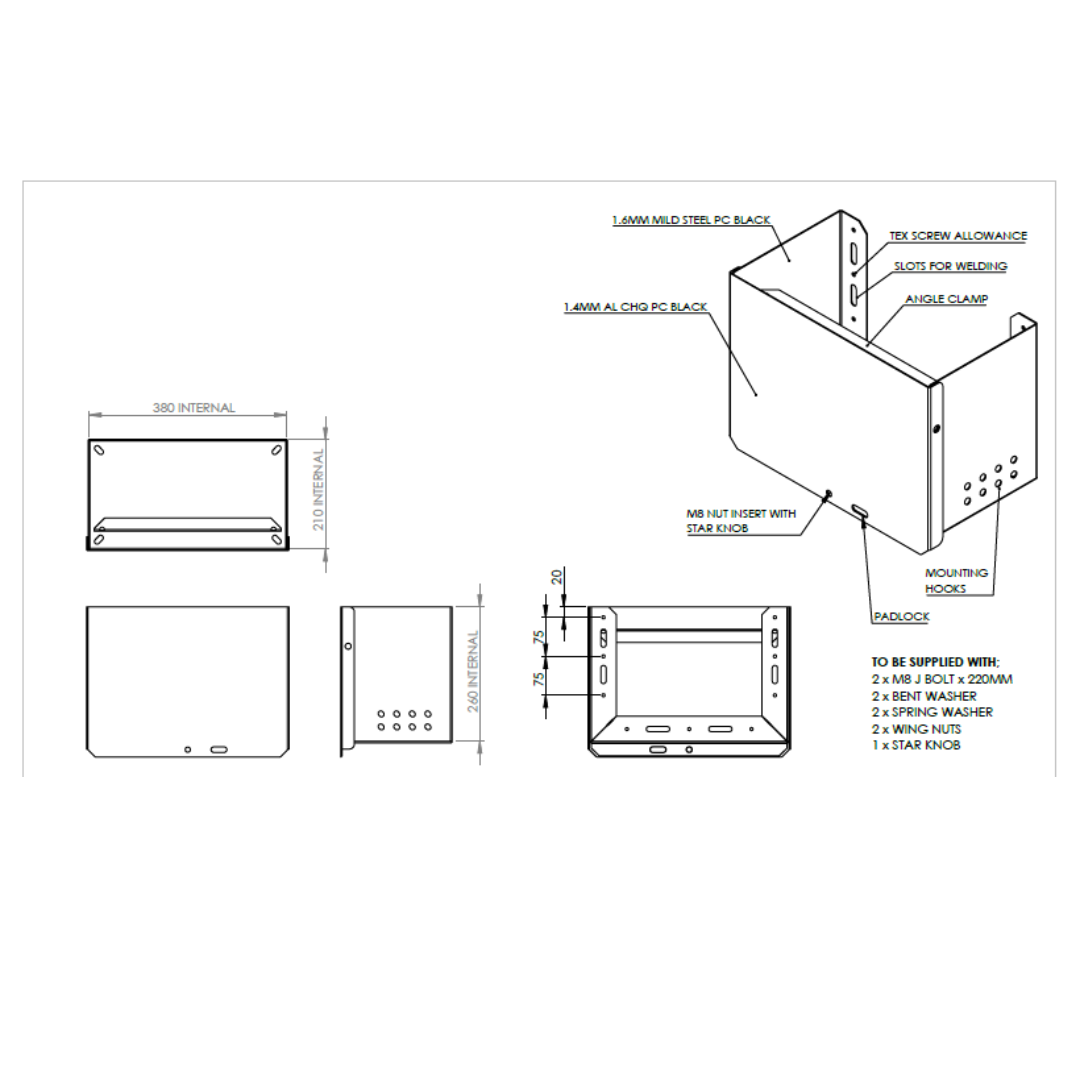

EXTERNAL DIMENSIONS.... WIDTH 395mm X HEIGHT 290mm X DEPTH 220mm

MAXIMUM BATTERY DIMENSIONS WITHIN RETAINING SYSTEM ARE...

BATTERY WIDTH 320mm X BATTERY HEIGHT INL TERMINALS 250mm X BATTERY DEPTH 205mm.

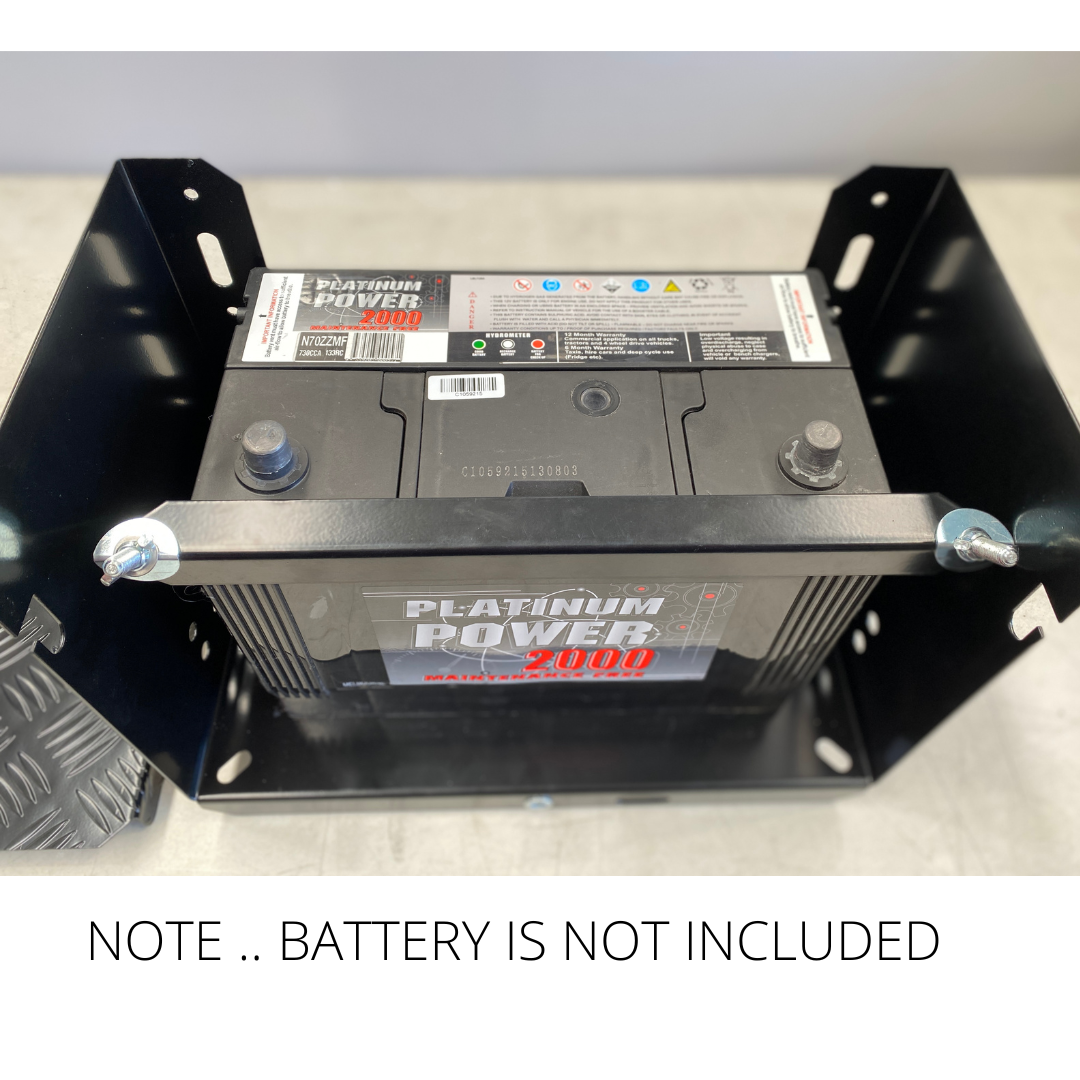

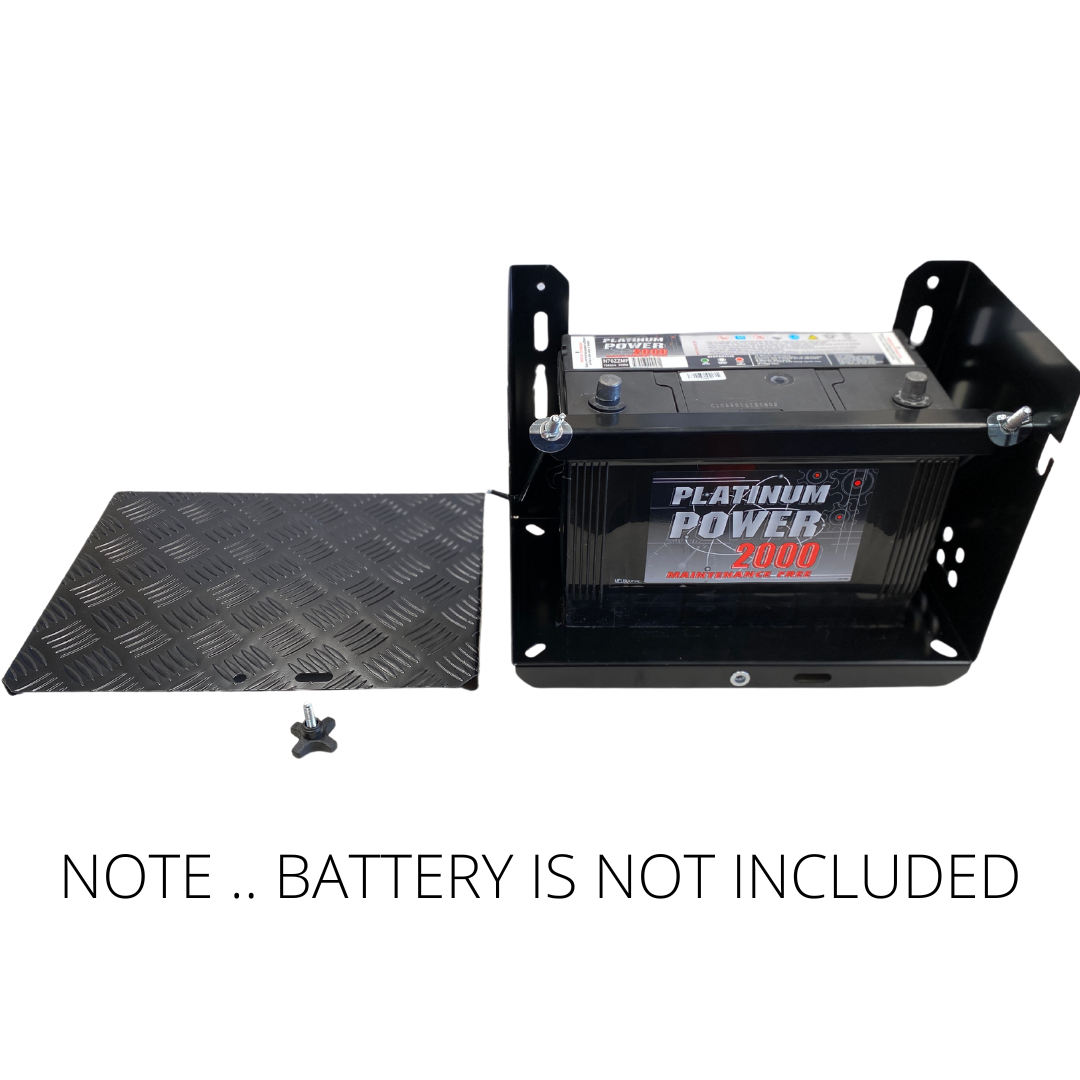

BATTERY IS NOT INCLUDED, FOR ILLUSTRATIVE PURPOSE ONLY.

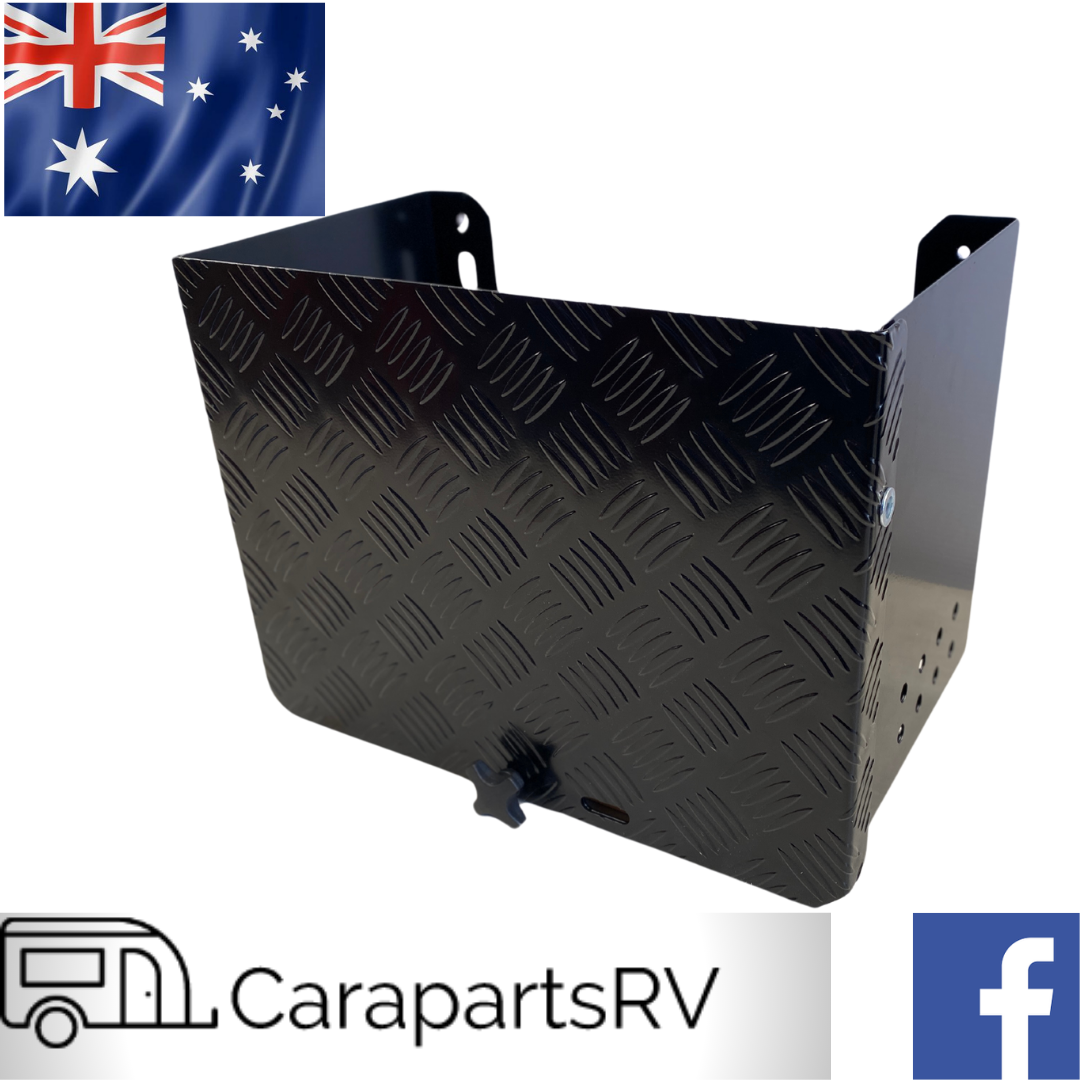

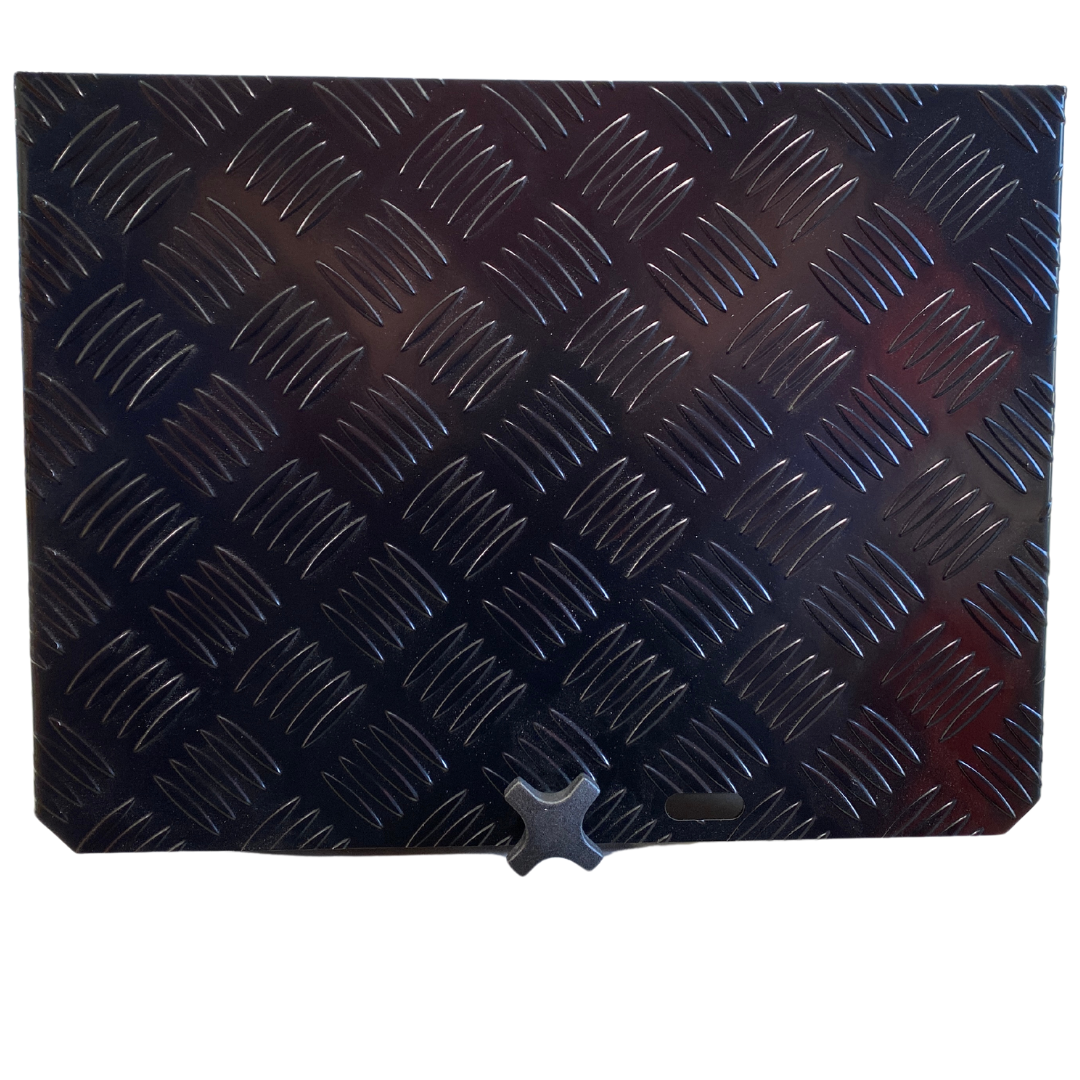

CASE IS POWDER COATED GALVANISED STEEL, FRONT DOOR IS ALUMINIUM CHECKER PLATE.

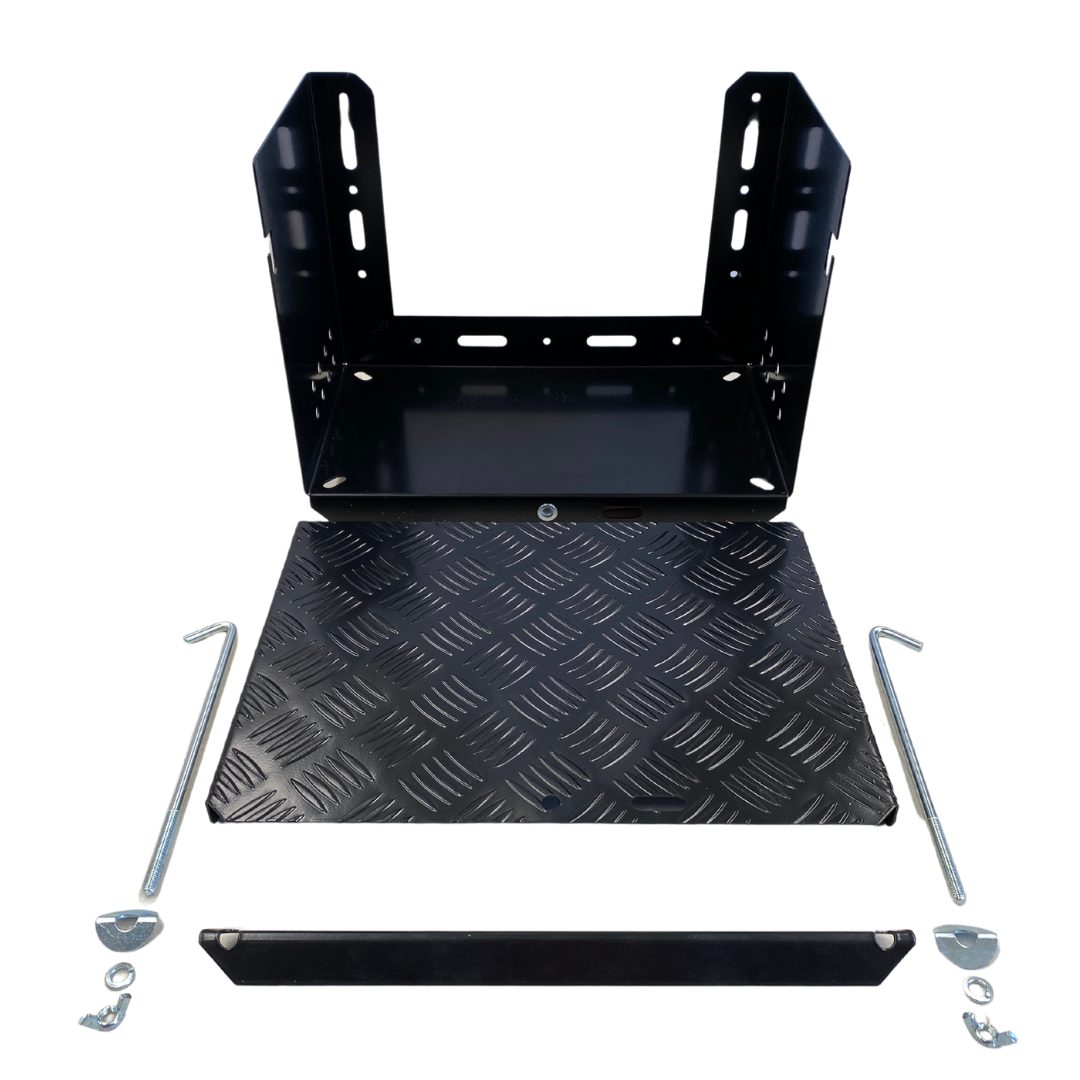

KIT INCLUDES... 1 X RETAINING BAR, 2 X J-HOOKS, 2 X FOLDED WASHERS, 2 X SPRING WASHERS, 2 X WINGNUTS,

1 X FRONT DOOR KNOB, FRONT DOOR, AND BATTERY BOX CRADLE.

HIGH QUALITY AUSTRALIAN MADE PRODUCT. BUILT TO LAST.



(CMBB-BLK)

SKU CMBB-BLK
Brand RAPTOR
