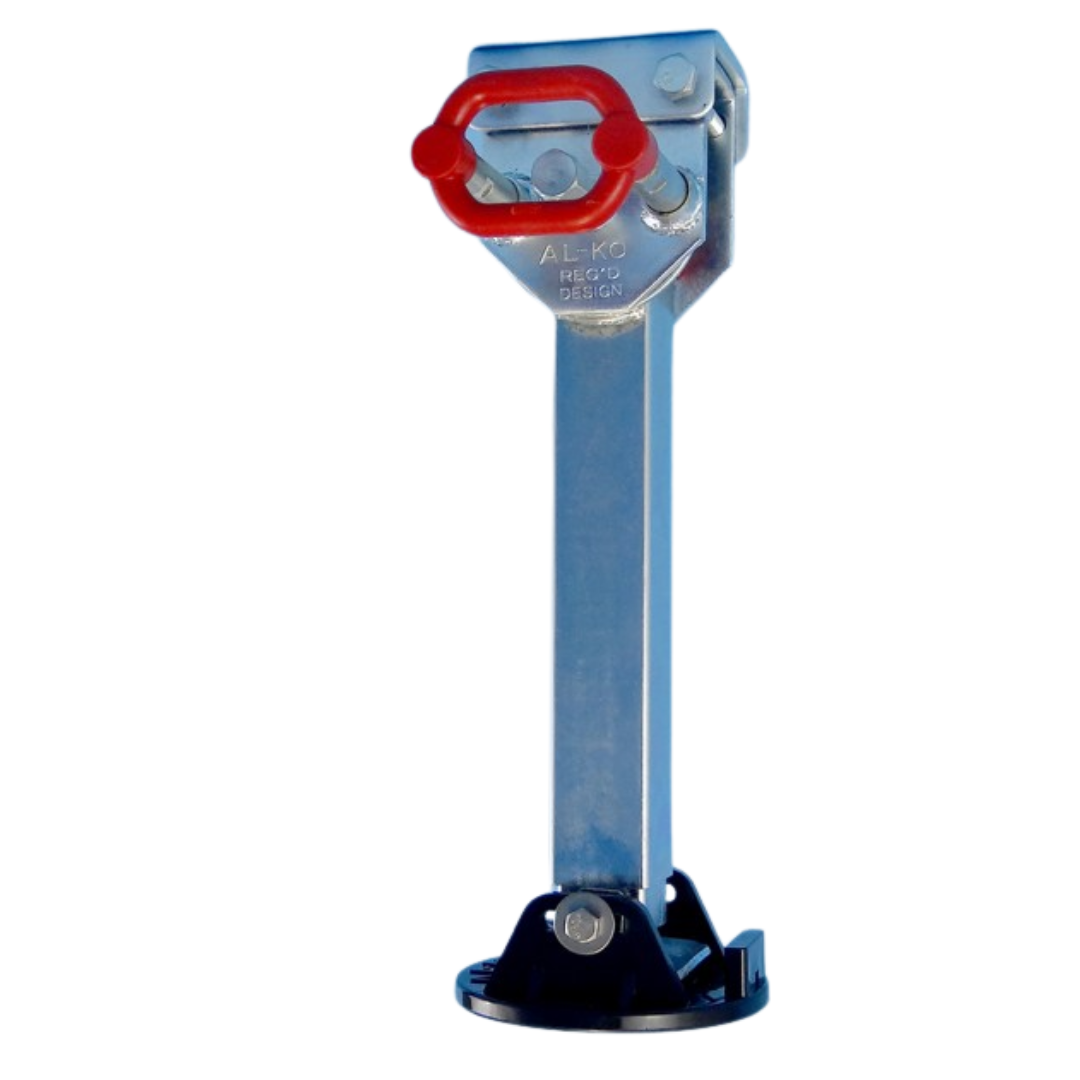

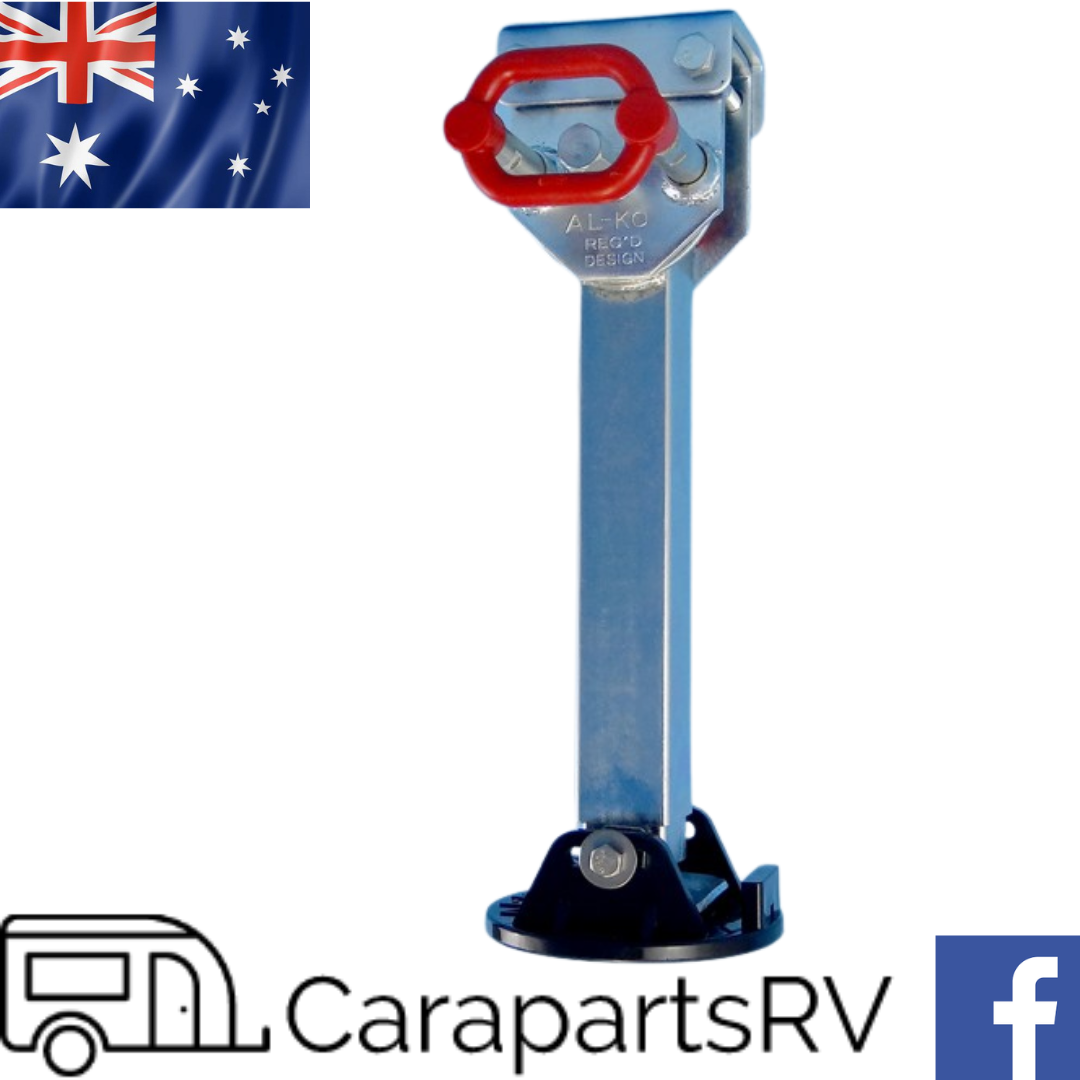

ALKO Drop Down Jackleg or Corner Steady, designed to stabilise your van when on site.

  • Model: 654884, 042662, 450-05464
  • Brand: ALKO

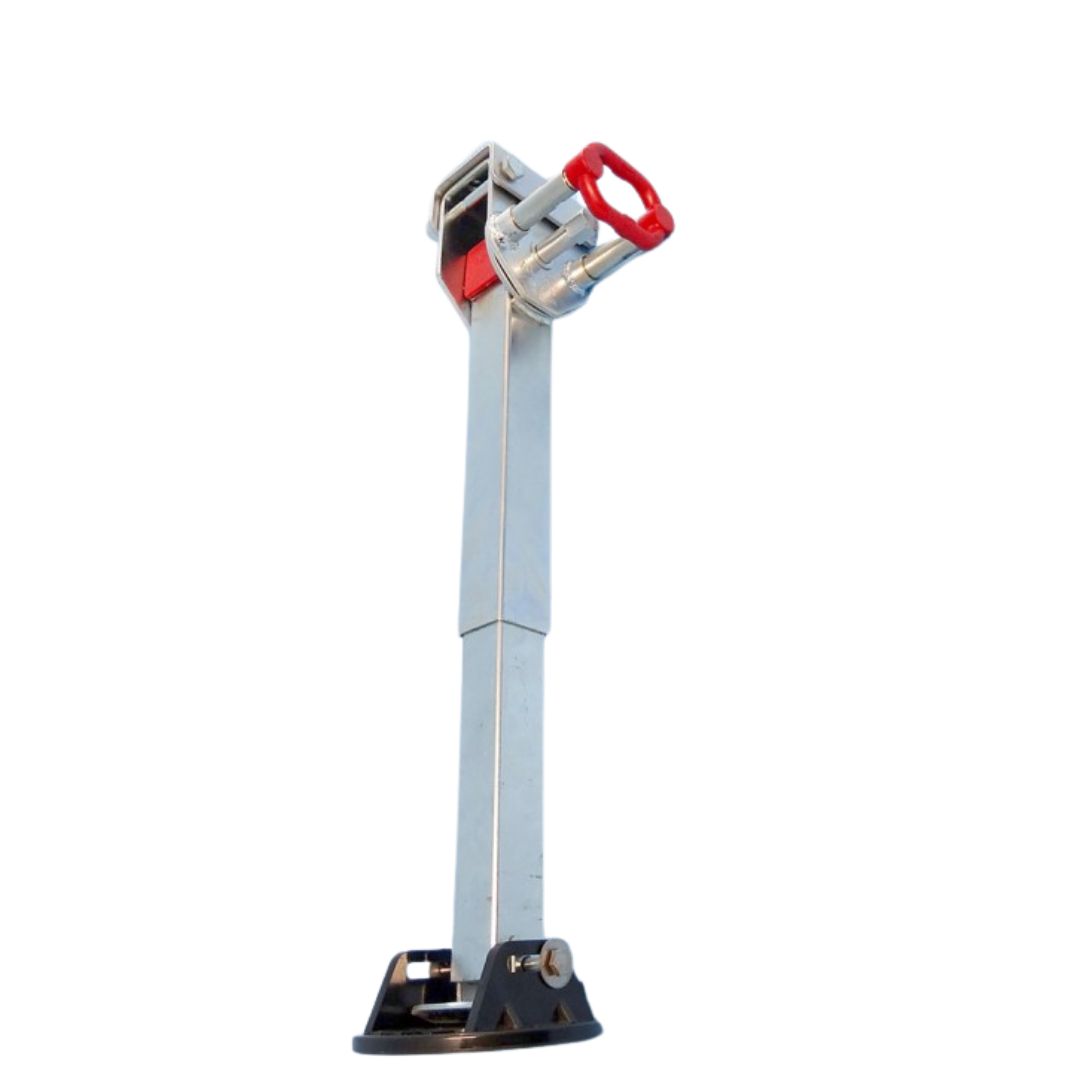

  • Height Fully Extended: 840mm (Bigfoot Included)
  • Minimum Vertical Height: 610mm (Bigfoot Included)
  • Stowed Height: 125mm

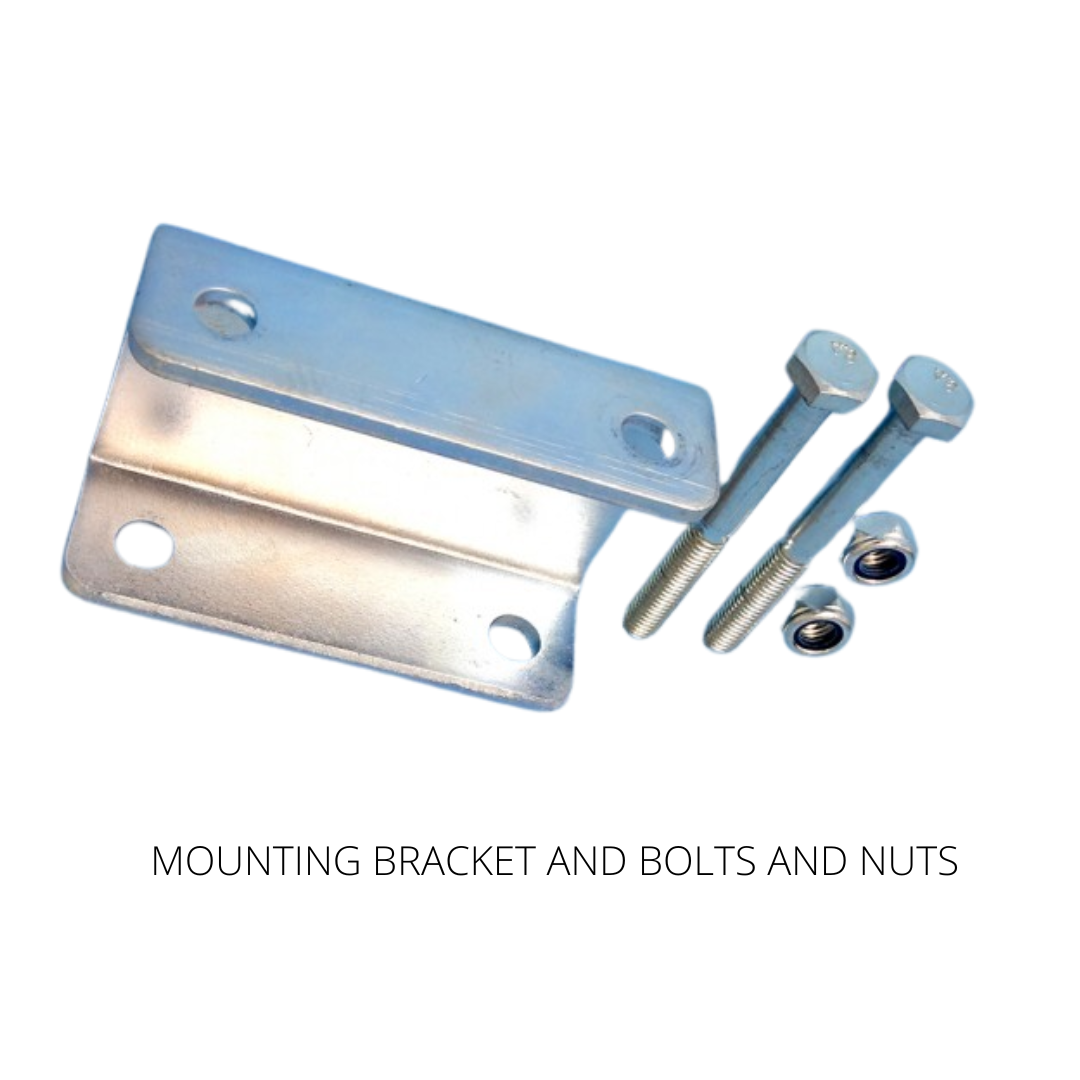

  • The mounting bracket for welding is 110mm x 75mm. If bolting to the frame the bracket is 100 x 65mm with 80mm hole centres.
  • The internal dimensions of the bracket are L 110mm x W 65mm
  • Shipping Weight: 6.10 Kgs.
  • Shipping Dimensions: 17 cm x 14 cm x 60 cm.
  • SKU. ADDL-61
  • Modern design for improved stability
  • Achieves vertical position for greater rigidity
  • Zinc-plated for complete durability

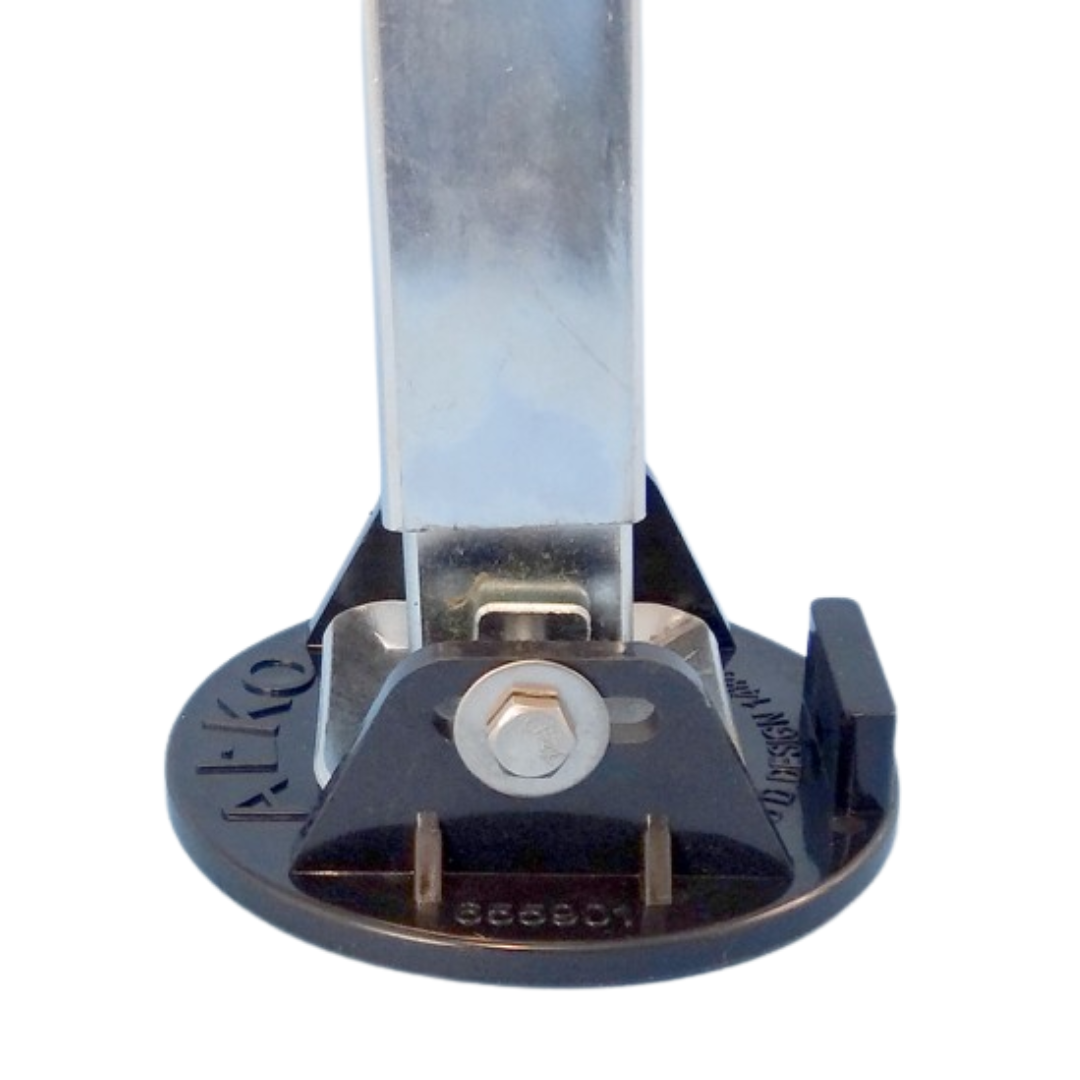

  • 19mm hex drive and Big Foot base plate
  • Quick-release for easy locking

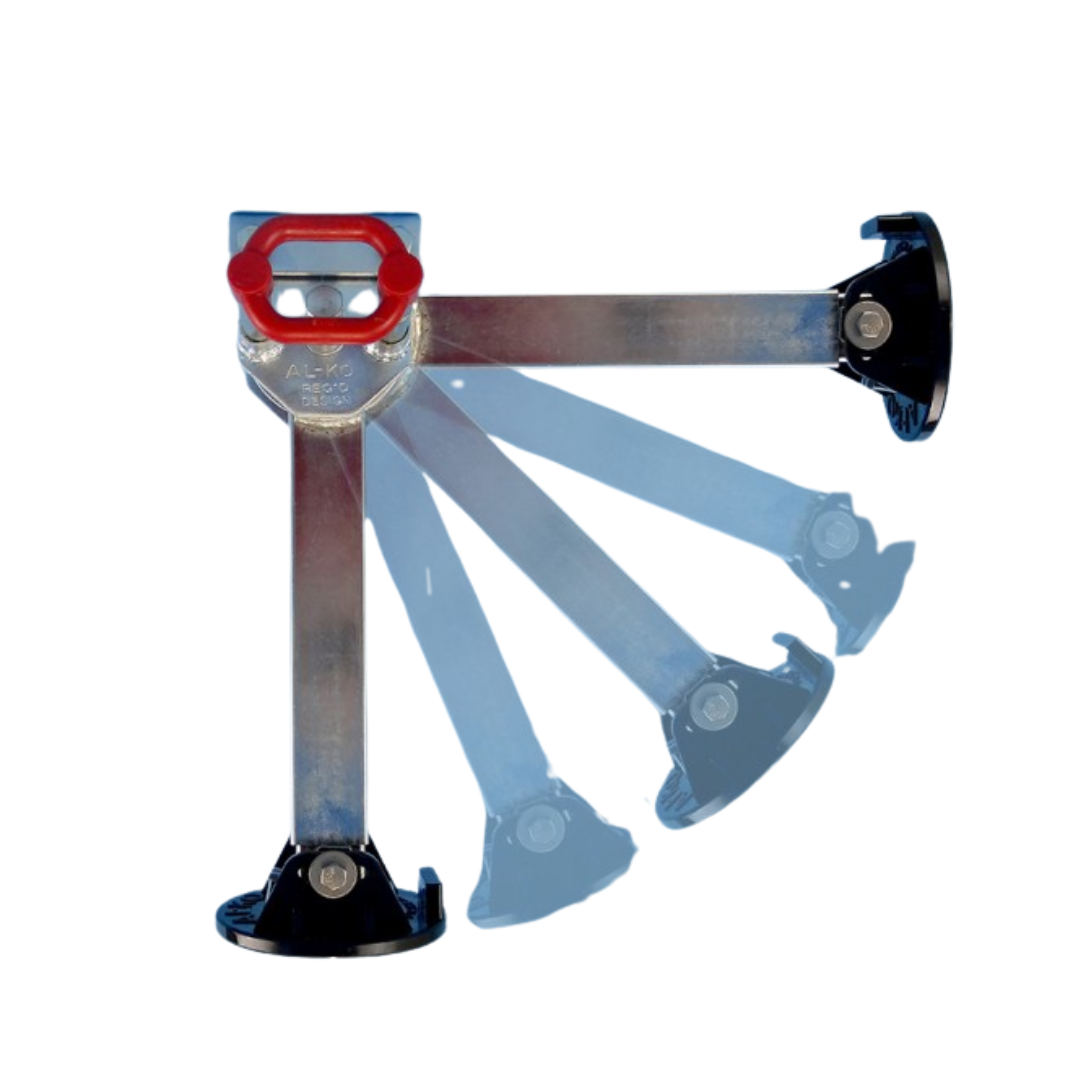

  • 180-degree rotation for mounting on either side

Please note: These are not jacks - THEY ARE NOT DESIGNED AS A LIFTING DEVICE.  excessive pressure will damage the leg and void warranty.

(ADDL-61)

SKU ADDL-61
Brand ALKO
