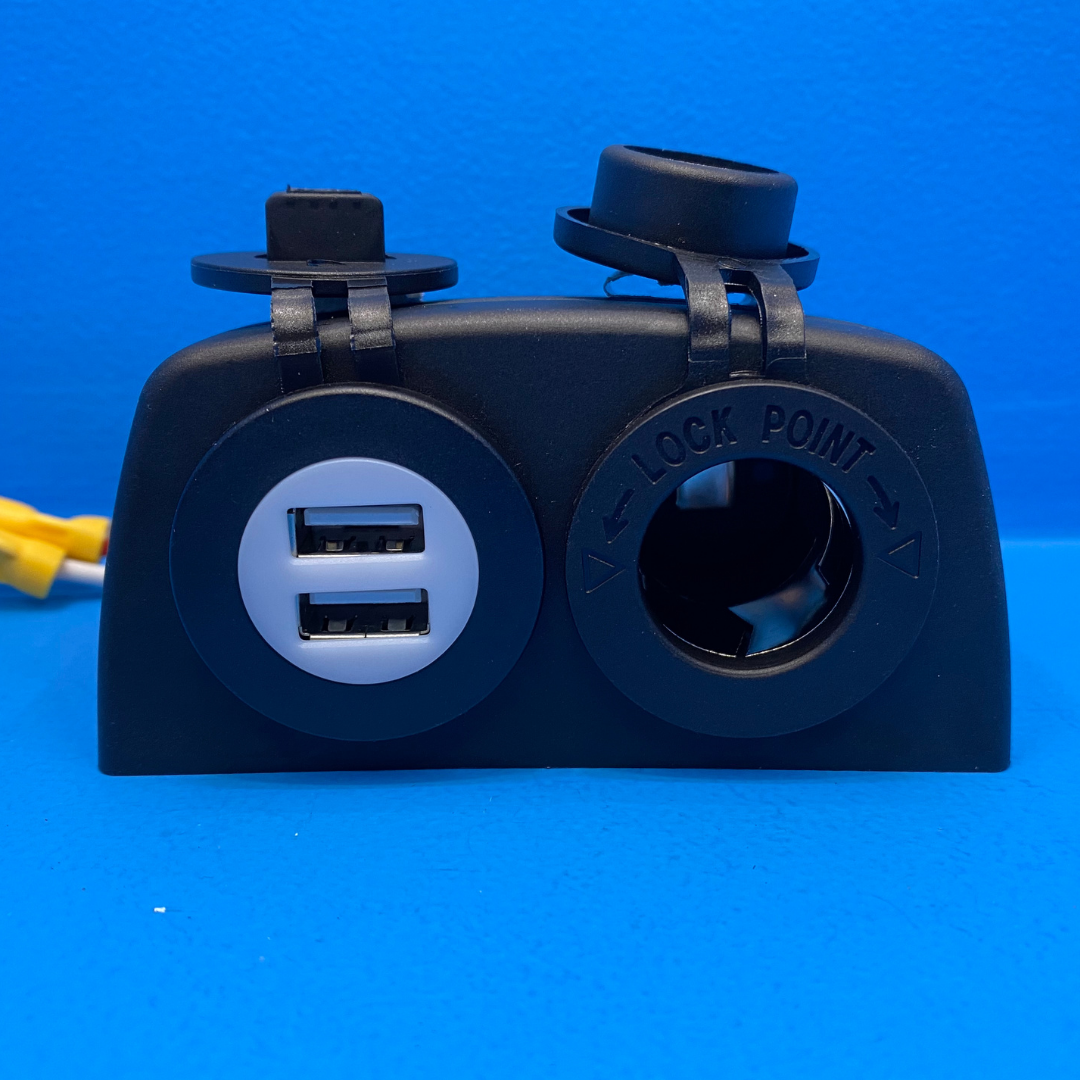

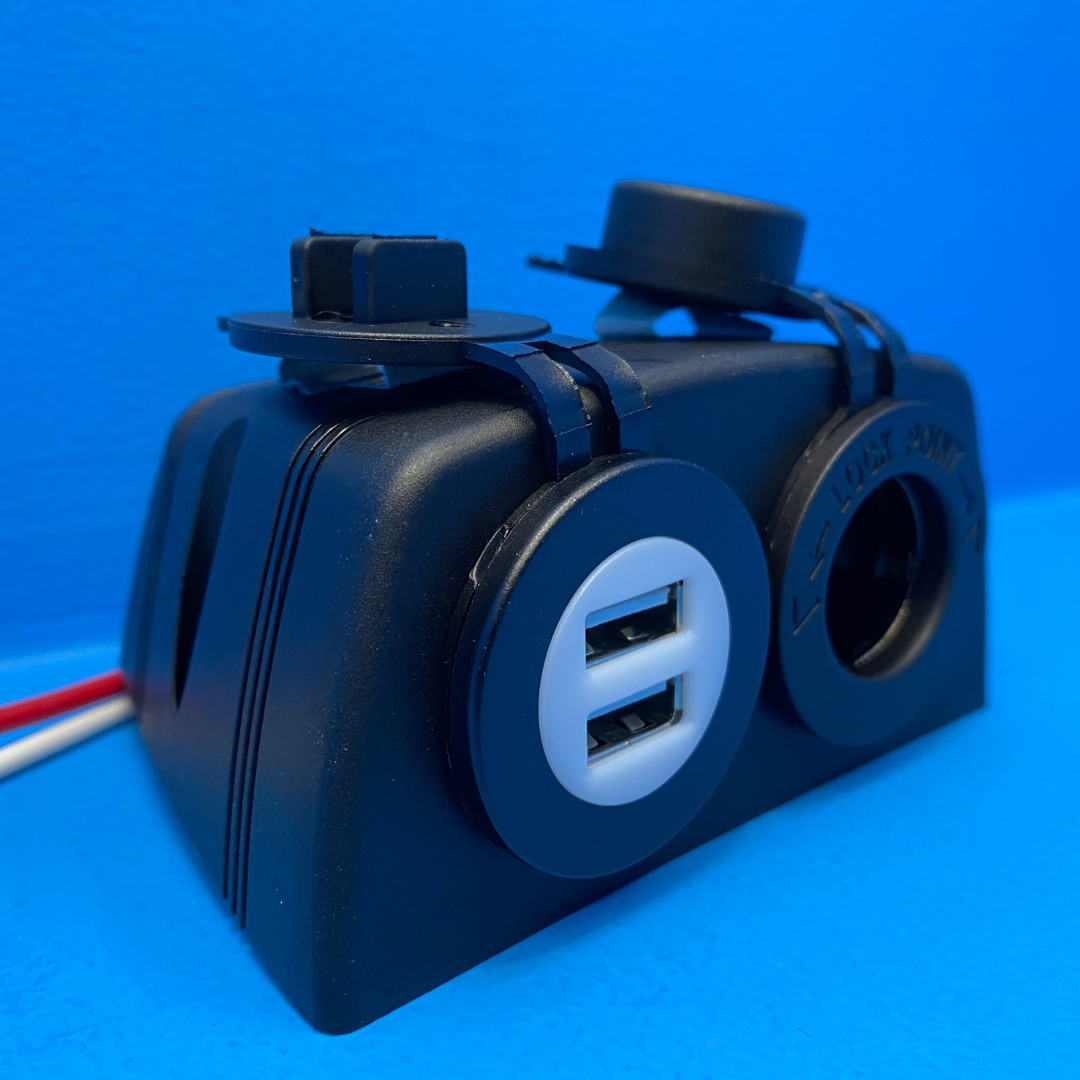

12V DC CIG SOCKET AND TWIN USB SURFACE MOUNT COMBINATION BY AREIAL.

12V CIG SOCKET RATED TO 15A MAX.

USB'S RATED TO 2.5A.

HEAVY DUTY HOUSING COMES WITH TWO BLACK SELF TAPPING SCREWS.

UNIT IS PRE-WIRED AND FITTED WITH PUSH TOGETHER TERMINALS.

RED WIRE IS +VE.... WHITE WIRE IS -VE

ACCIDENTAL REVERSE POLARITY OF TERMINALS WILL VOID WARRANTY.

HOUSING MEASURES...100mm WIDE X 80mm DEEP X 45mm HIGH.

AREIAL/CES PART NUMBER...  ARL12VUSBS2B

DUST COVERS FOR EACH OUTLET INCLUDED.

(ARL12VUSBS2B)

SKU ARL12VUSBS2B
Brand AREIAL / CES
